Electric Operated Dispenser
Couldn't load pickup availability

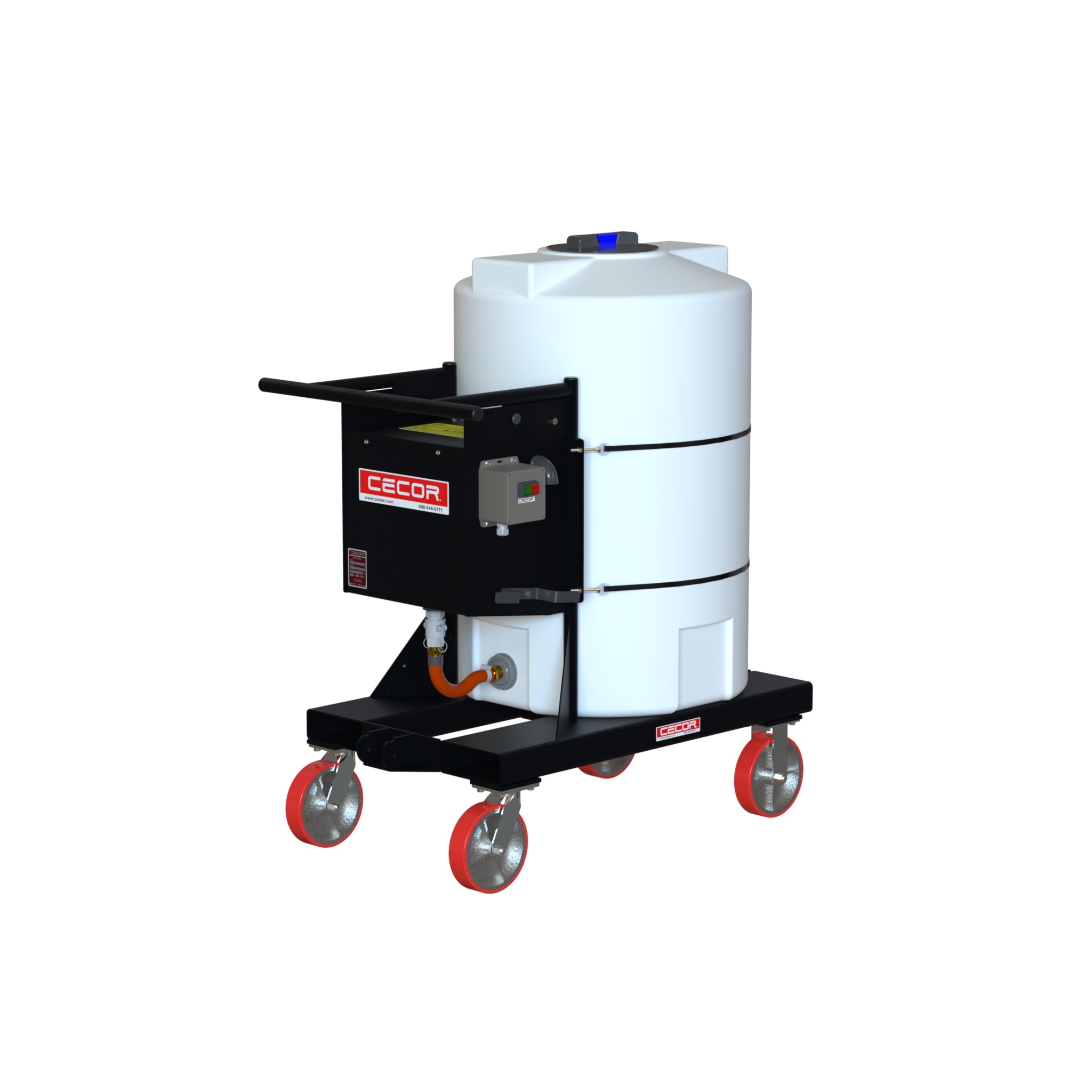

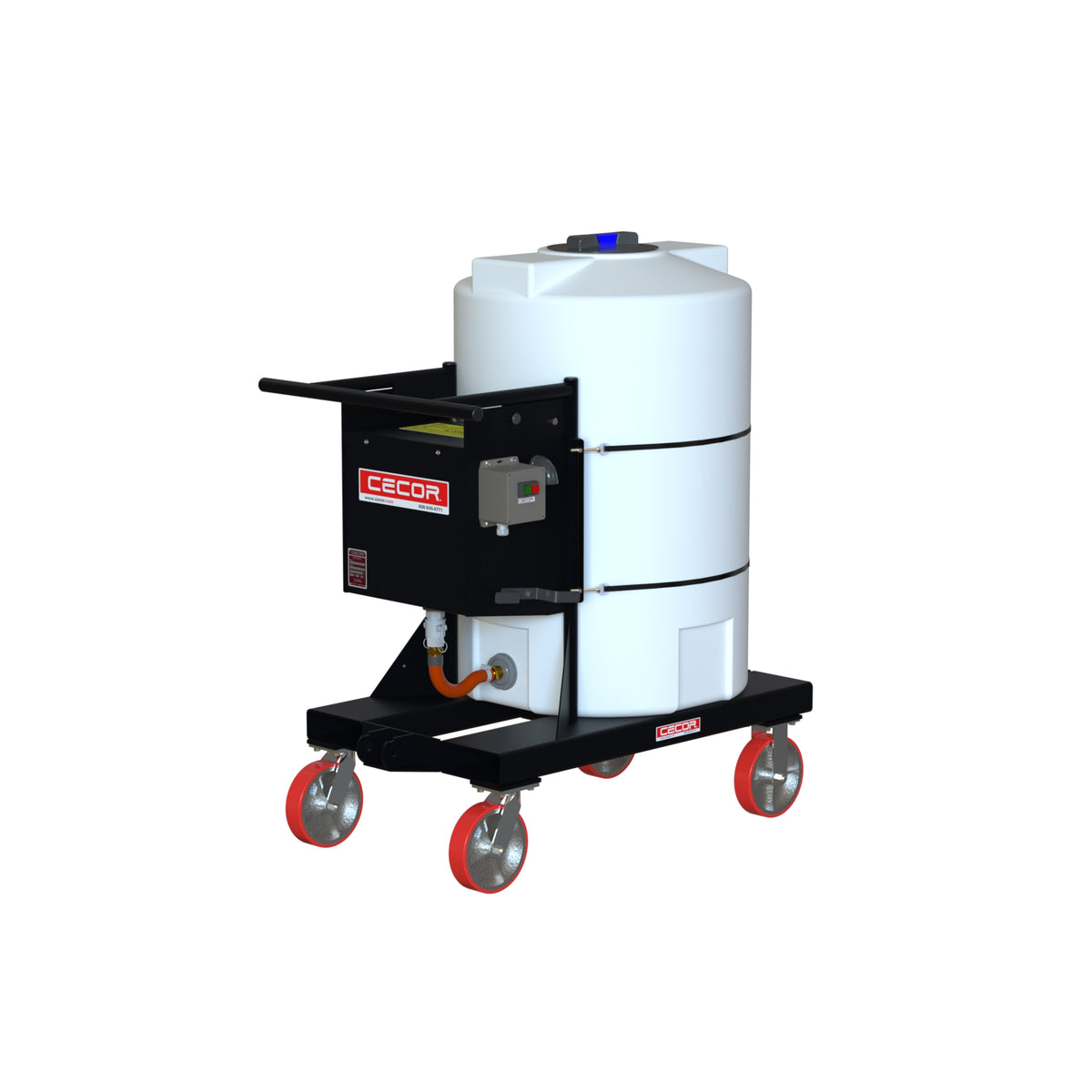

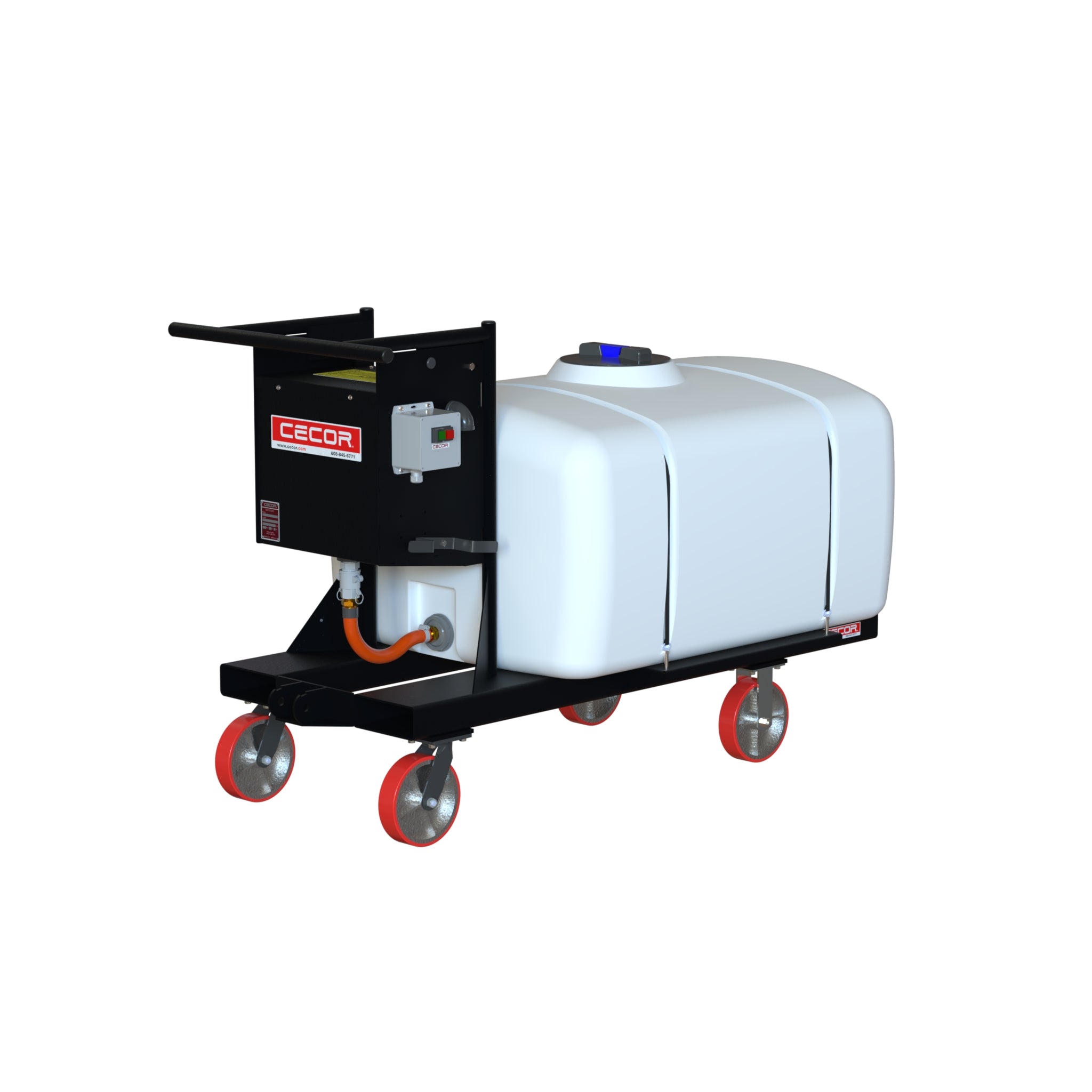

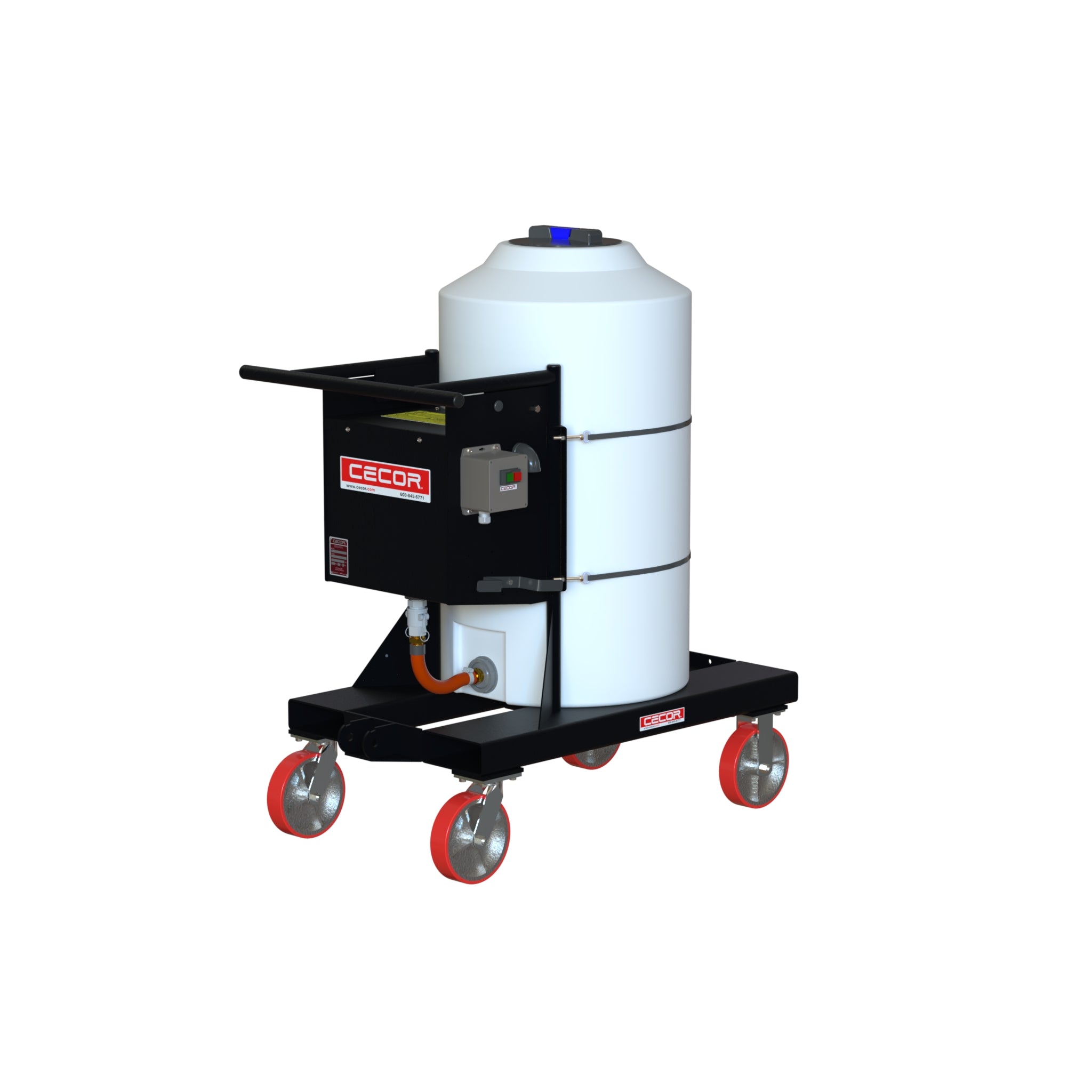

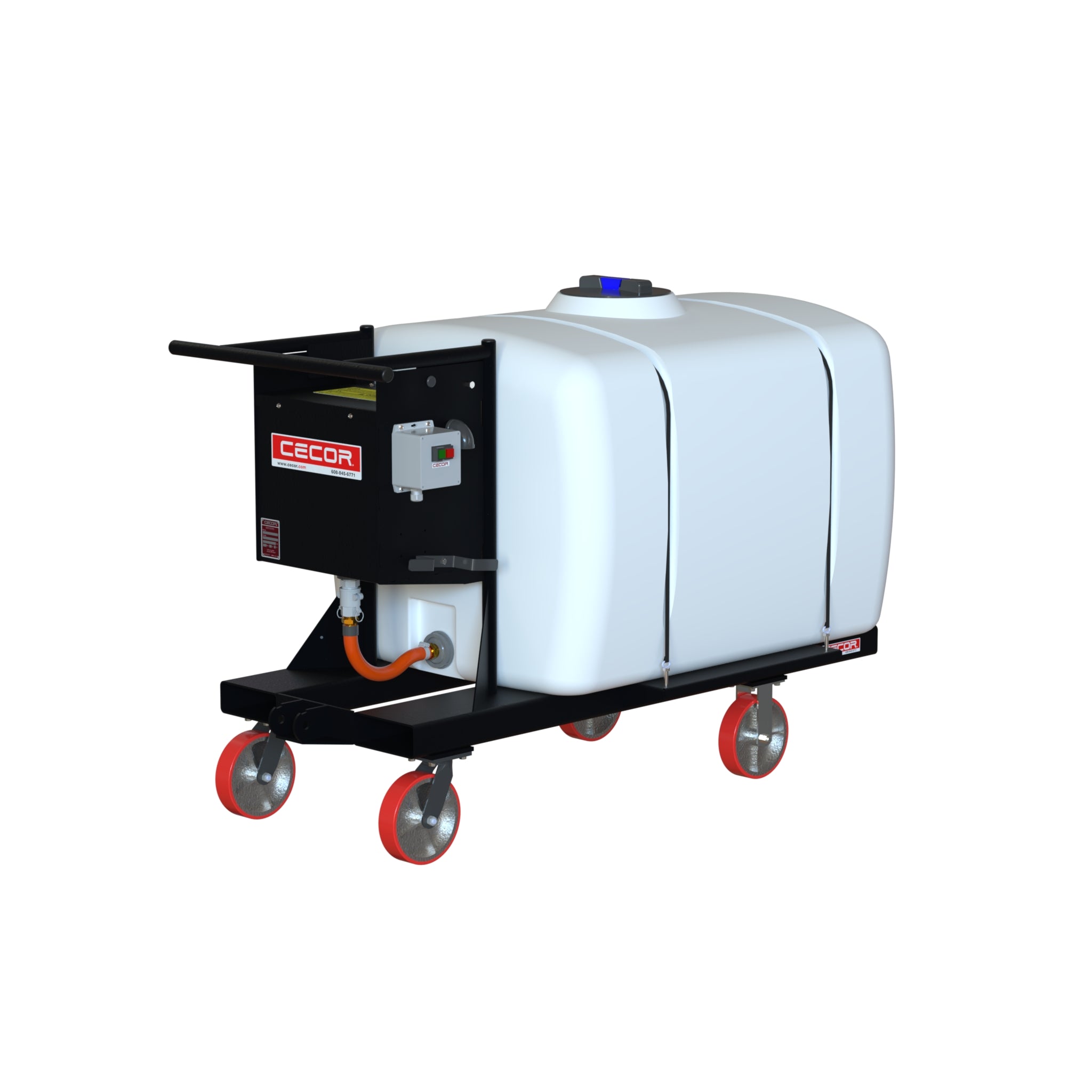

CECOR DE4 Dispenser
CECOR’s single phase electric mobile dispensers are equipped to dispense metalworking fluid at up to 15 gallons per minute. Companies using CECOR dispensers benefit from a more controlled dispensing solution that reduces guesswork, fluid waste, and operator fatigue. The DE4 is manufactured to handle the industrial environment and is available in 4 sizes from 65 to 200 gallons.
Our customers have used CECOR mobile dispensers for both topping off sumps & refilling machine tools with fresh or recycled metalworking fluid. The dispensers have quality casters for easy movement around the shop floor. The DE4 uses a diaphragm vacuum pump to move the fluid from the DE4 to the machine tool. There is a shutoff valve at the end of the hose so the user can quickly stop the flow when needed.
This unit can be matched with the CECOR mixer to quickly fill the dispenser, easily & quickly move the dispenser to a machine tool and either top it off or fill it up.
CECOR DE4 Dispenser
Introducing CECOR's single-phase electric mobile dispensers, designed to optimize metalworking fluid management. With a dispensing capacity of up to 15 gallons per minute, the DE4 ensures precise distribution, reducing guesswork, waste, and operator fatigue.
Built to thrive in industrial environments, the DE4 comes in four sizes from 65 to 200 gallons, providing tailored solutions for various needs. Whether topping off sumps or refilling machine tools with fresh or recycled fluid, our dispensers offer unparalleled versatility.
Equipped with quality casters for effortless mobility, the DE4 employs a diaphragm vacuum pump for fluid transfer, featuring a shutoff valve for user control. Enhance efficiency with our CECOR mixer for rapid dispenser filling and relocation to machine tools, simplifying your workflow.
Series: | DE4 |
Tank Sizes | L / W / D - inches: |
65 gal | 47" x 28" x 56" |
246 L | 119.4 x 71.10 x 142.24 cm |
100 gal | 47" x 28" x 56" |
378 L | 119.4 x 71.10 x 142.24 cm |
150 gal | 67" x 28" x 48" |
568L | 170.20 x 71.10 x 121.9 cm |
200 gal | 67" x 28" x 51" |
757 L | 170.20 x 71.10 x 129.5 cm |
Dispenser Details | |
Transport: | PTL (Push or Lift with optional Tow) |
Dispensing Speed: | Up to 15 gpm | 57 lpm |
Drain: | 3/4" Spigot |
Shipping: | LTL |
Electric Motor: | 1/4 HP |
Electrical Requirements: | |
Volts: | 115 |
Amps: | 3 |
Hertz: | 60 |
Phases: | 1 |
Power Cord: | 15' | 38.10 cm |
Standard Dispense Hose: | |
Inches | 1" (5.08 cm) ID x 16' (4.8768 m) |
Nozzle: | Full flow shut-off nozzle |
Dispenser Wheels: | |
65 Gal | 246 L | |
Front: | Two 5" (12.7 cm) x 2" (5.08 cm) Swivel |
Rear: | Two 5" (12.7 cm) x 2" (5.08 cm) Rigid |
100 gal | 378 L | |
Front: | Two 5" (12.7 cm) x 2" (5.08 cm) Swivel |
Rear: | Two 5" (12.7 cm) x 2" (5.08 cm) Rigid |
150 gal | 568L | |
Front: | Two 8" (20.32 cm) x 2" (5.08 cm) Swivel |
Rear: | Two 12" (30.08 cm) x 3" (7.62 cm) Wheels |
200 gal | 757 L | |
Front: | Two 8" (20.32 cm) x 2" (5.08 cm) Swivel |
Rear: | Two 12" (30.08 cm) x 3" (7.62 cm) Wheels |
