Battery Powered Dispenser
Couldn't load pickup availability
CECOR DD4 Battery-Powered Dispenser: Effortless Fluid Management
Introducing CECOR's battery-powered mobile dispensers, meticulously crafted to innovate industrial fluid management. With a dispensing capacity of up to 15 gallons per minute, our DD4 dispenser ensures precision and efficiency, reducing guesswork, waste, and operator fatigue.

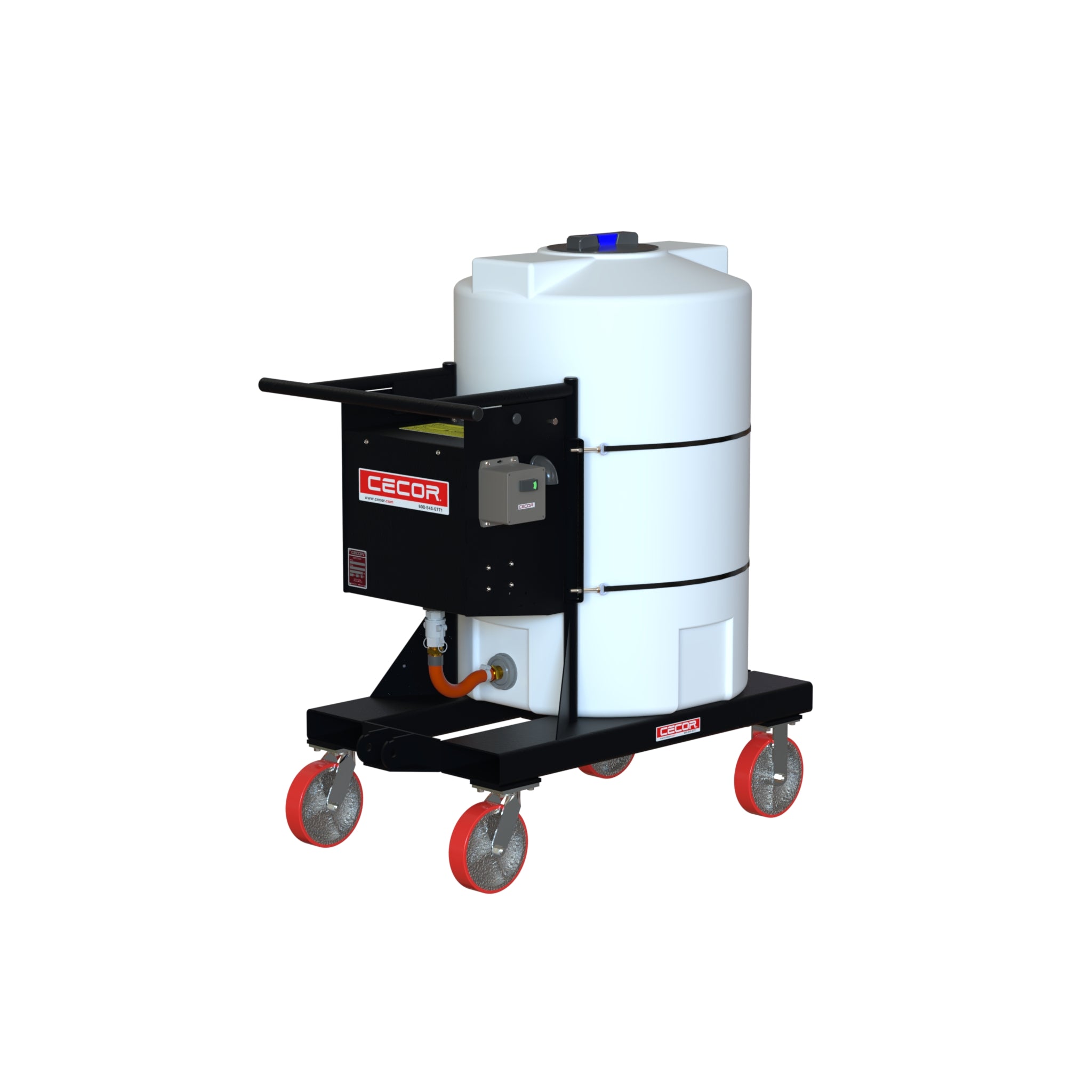

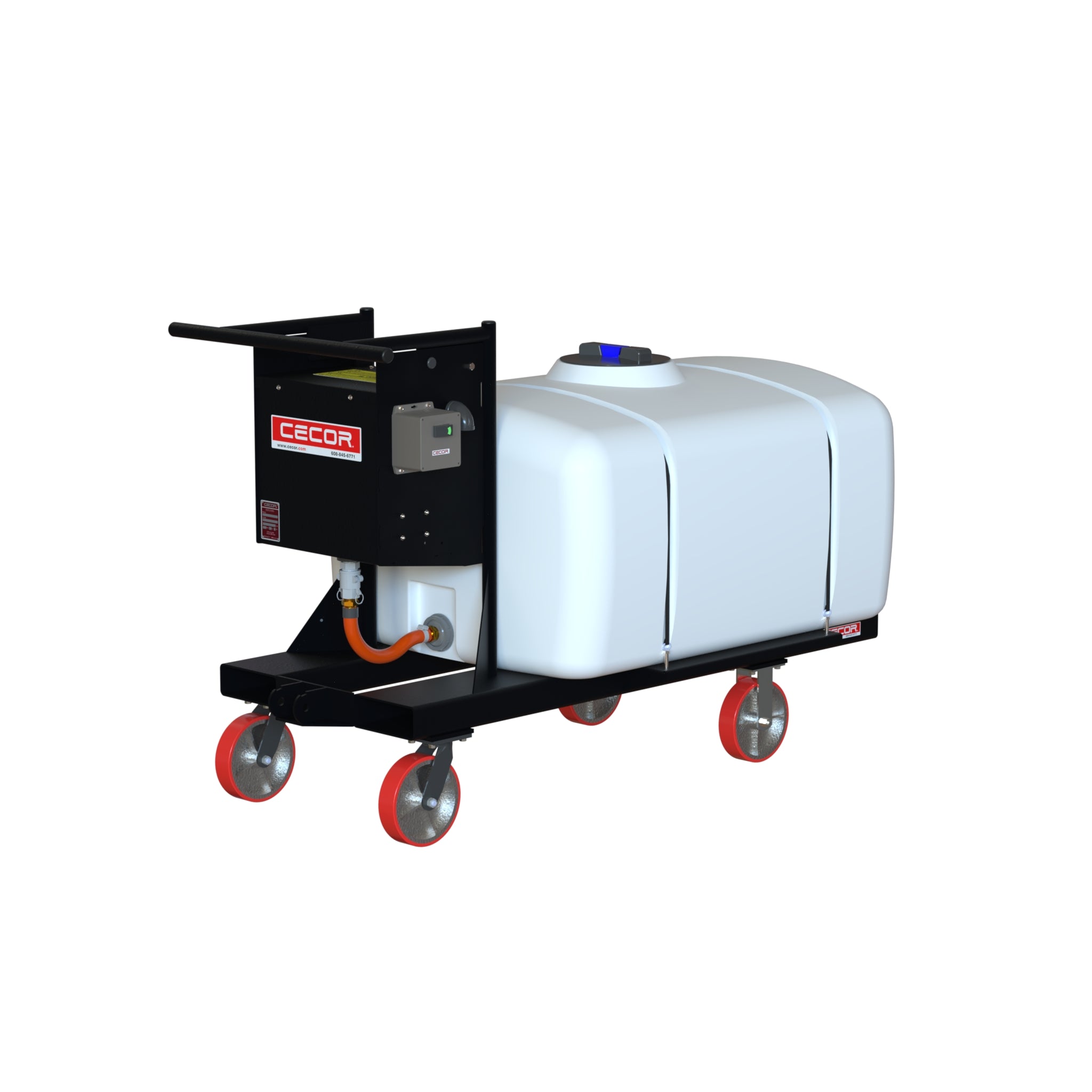

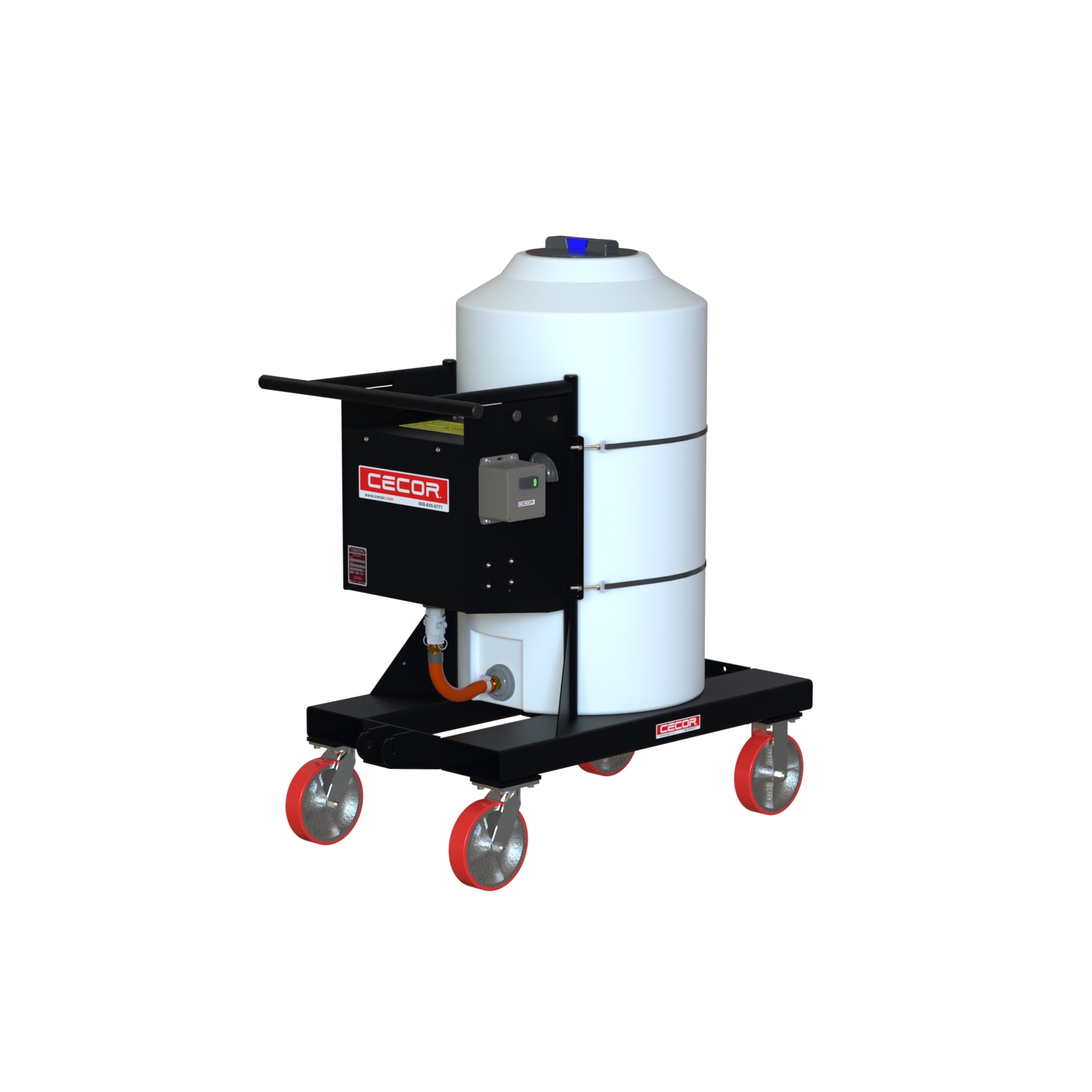

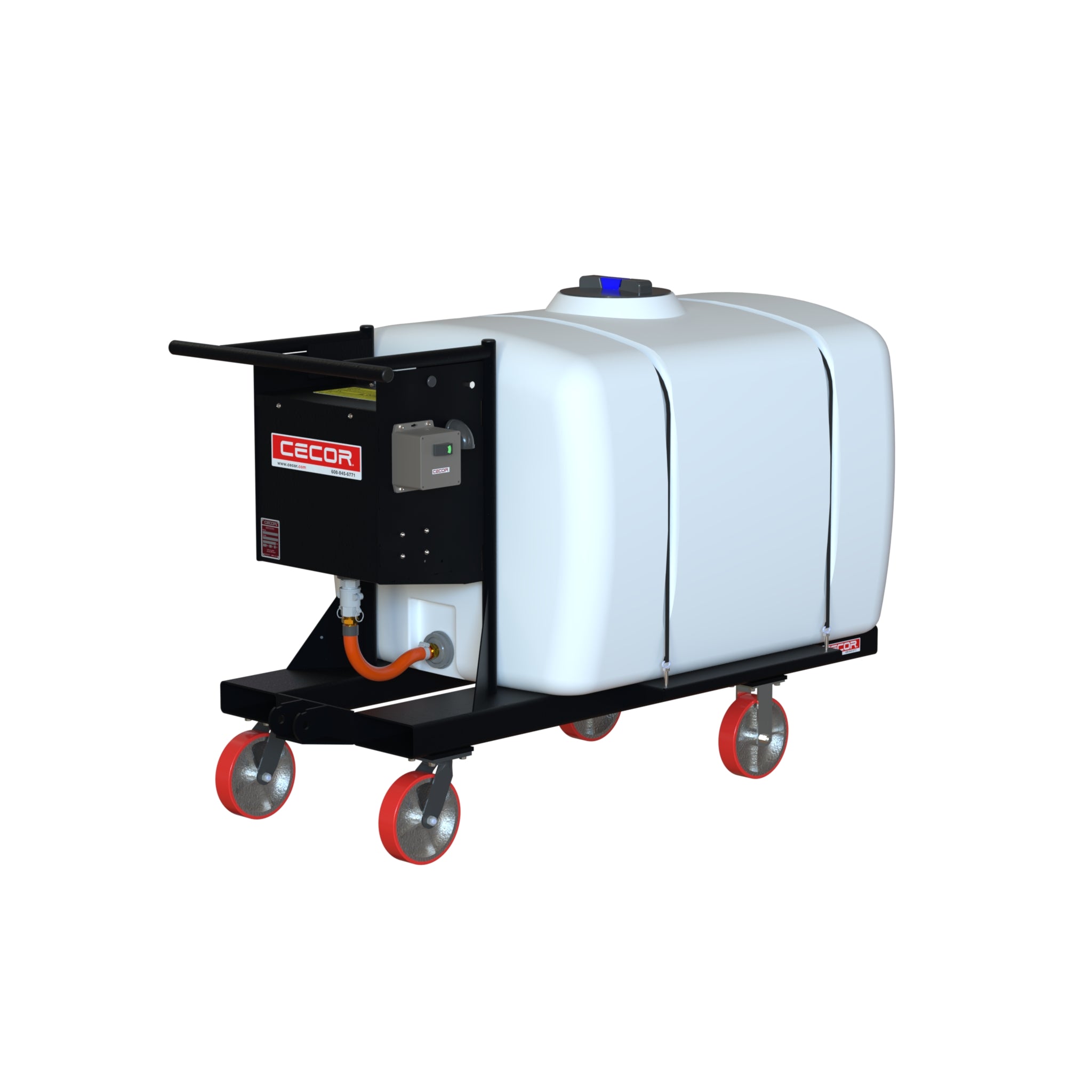

Built to withstand industrial environments, the DD4 comes in sizes from 65 to 200 gallons, offering tailored solutions for various needs. Whether topping off sumps or refilling machine tools with fresh or recycled metalworking fluid, our dispensers offer unparalleled versatility.
Equipped with quality casters for mobility, the DD4 uses a diaphragm vacuum pump for fluid transfer, with a convenient shutoff valve for user control. Enhance efficiency with our CECOR mixer for rapid dispenser filling and relocation to machine tools, streamlining your workflow.
Series: | DD4 |
Tank Sizes | L / W / D - inches: |
65 gal | 47" x 23" x 56" |
246 L | 119.4 x 71.10 x 142.24 cm |
100 gal | 47" x 28" x 56" |
378 L | 119.4 x 71.10 x 142.24 cm |
150 gal | 67" x 28" x 48" |
568L | 170.20 x 71.10 x 121.9 cm |
200 gal | 67" x 28" x 51" |
757 L | 170.20 x 71.10 x 129.5 cm |
Dispenser Details | |
Transport: | PTL (Push or Lift with optional Tow) |
Dispensing Speed: | Up to 15 gpm | 57 lpm |
Drain: | 3/4" Spigot |
Shipping: | LTL |
Electric Motor: | 250 W |
Electrical Requirements: | |
Volts: | 48 |
Amps: | 20 |
Battery (sold as option): | Li-ion |
Standard Dispense Hose: | |
Inches | 1" (5.08 cm) ID x 16' (4.8768 m) |
Nozzle: | Full flow shut-off nozzle |
Dispenser Wheels: | |
65 Gal | 246 L | |
Front: | Two 5" (12.7 cm) x 2" (5.08 cm) Swivel |
Rear: | Two 5" (12.7 cm) x 2" (5.08 cm) Rigid |
100 gal | 378 L | |
Front: | Two 5" (12.7 cm) x 2" (5.08 cm) Swivel |
Rear: | Two 5" (12.7 cm) x 2" (5.08 cm) Rigid |
150 gal | 568L | |
Front: | Two 8" (20.32 cm) x 2" (5.08 cm) Swivel |
Rear: | Two 12" (30.08 cm) x 3" (7.62 cm) Wheels |
200 gal | 757 L | |
Front: | Two 8" (20.32 cm) x 2" (5.08 cm) Swivel |
Rear: | Two 12" (30.08 cm) x 3" (7.62 cm) Wheels |
