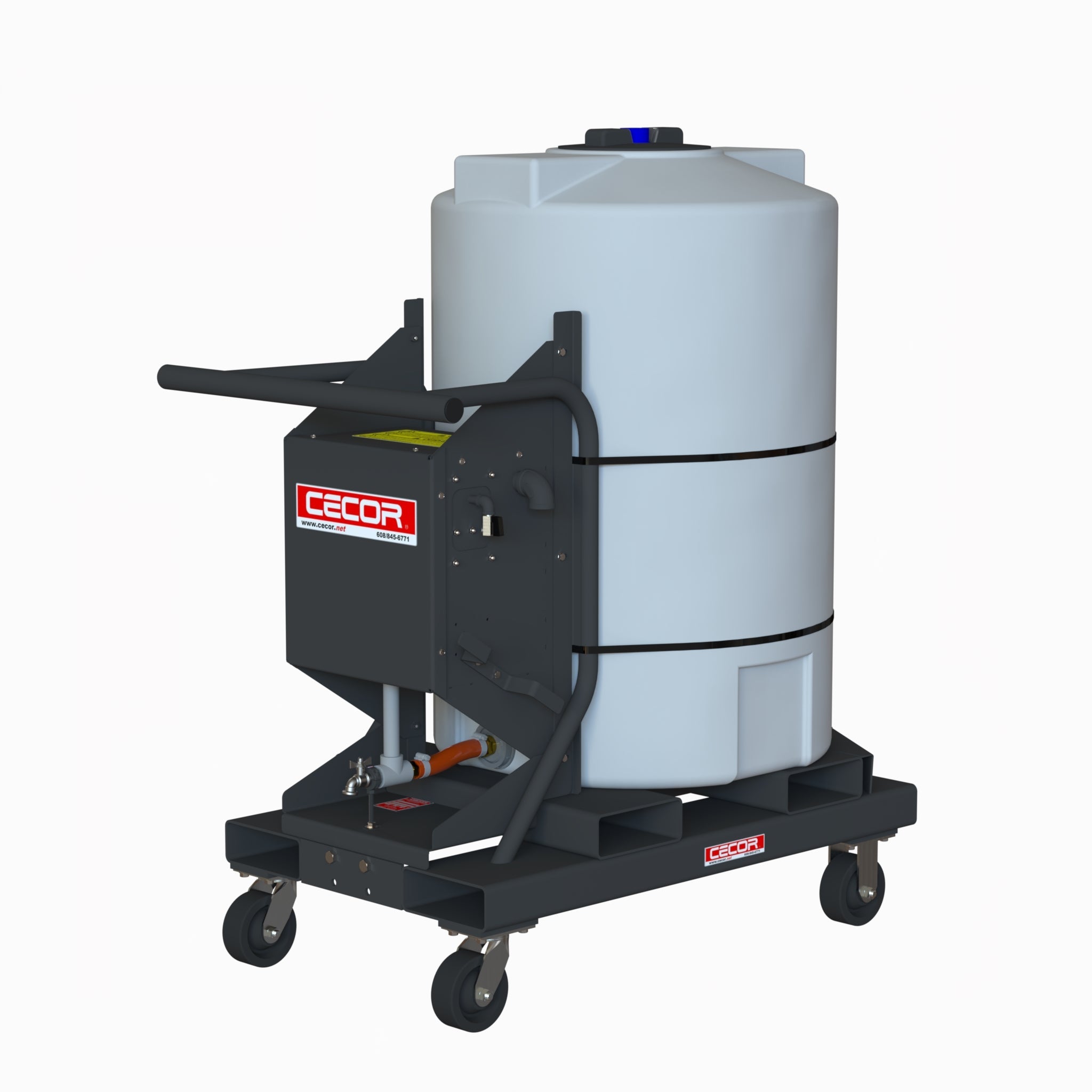

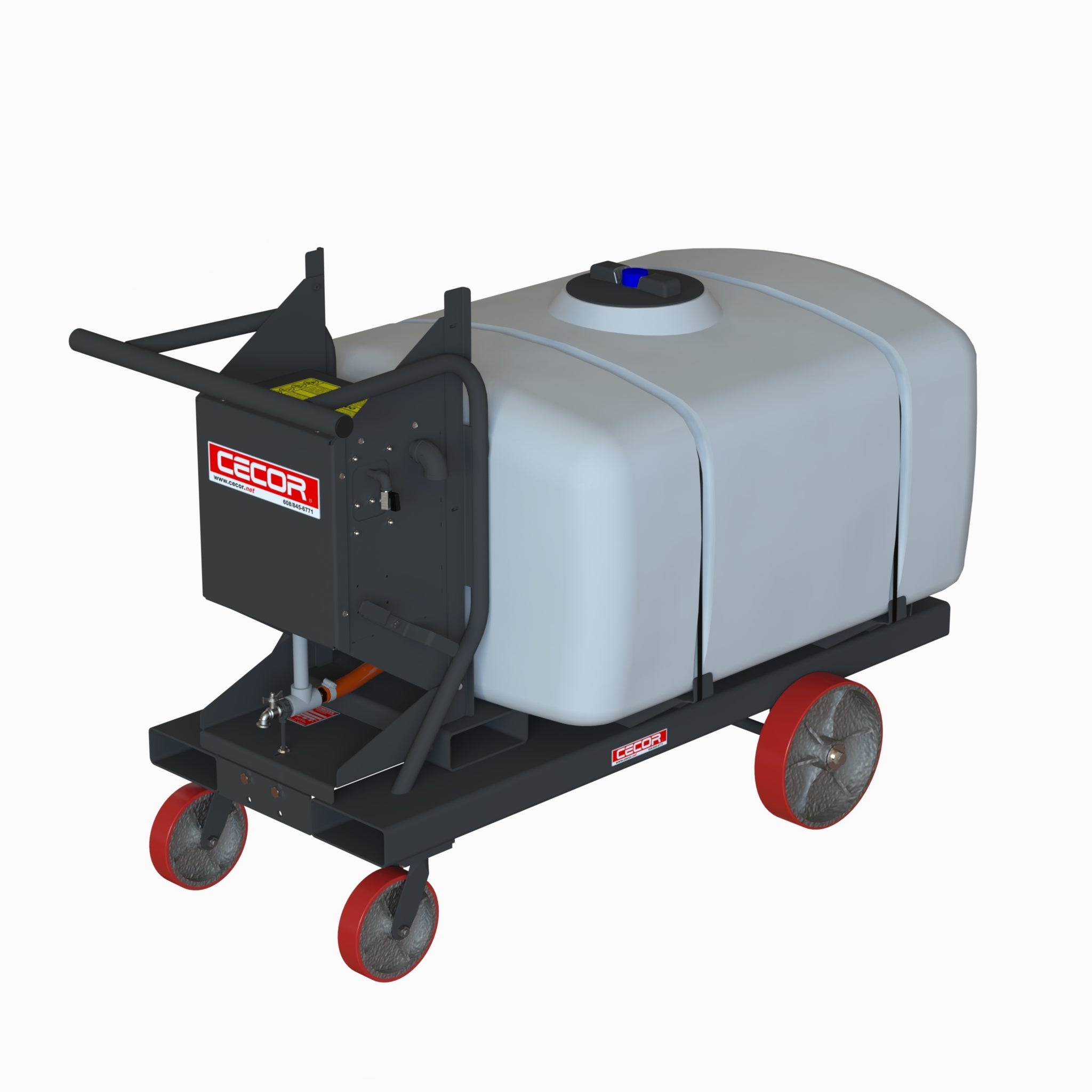

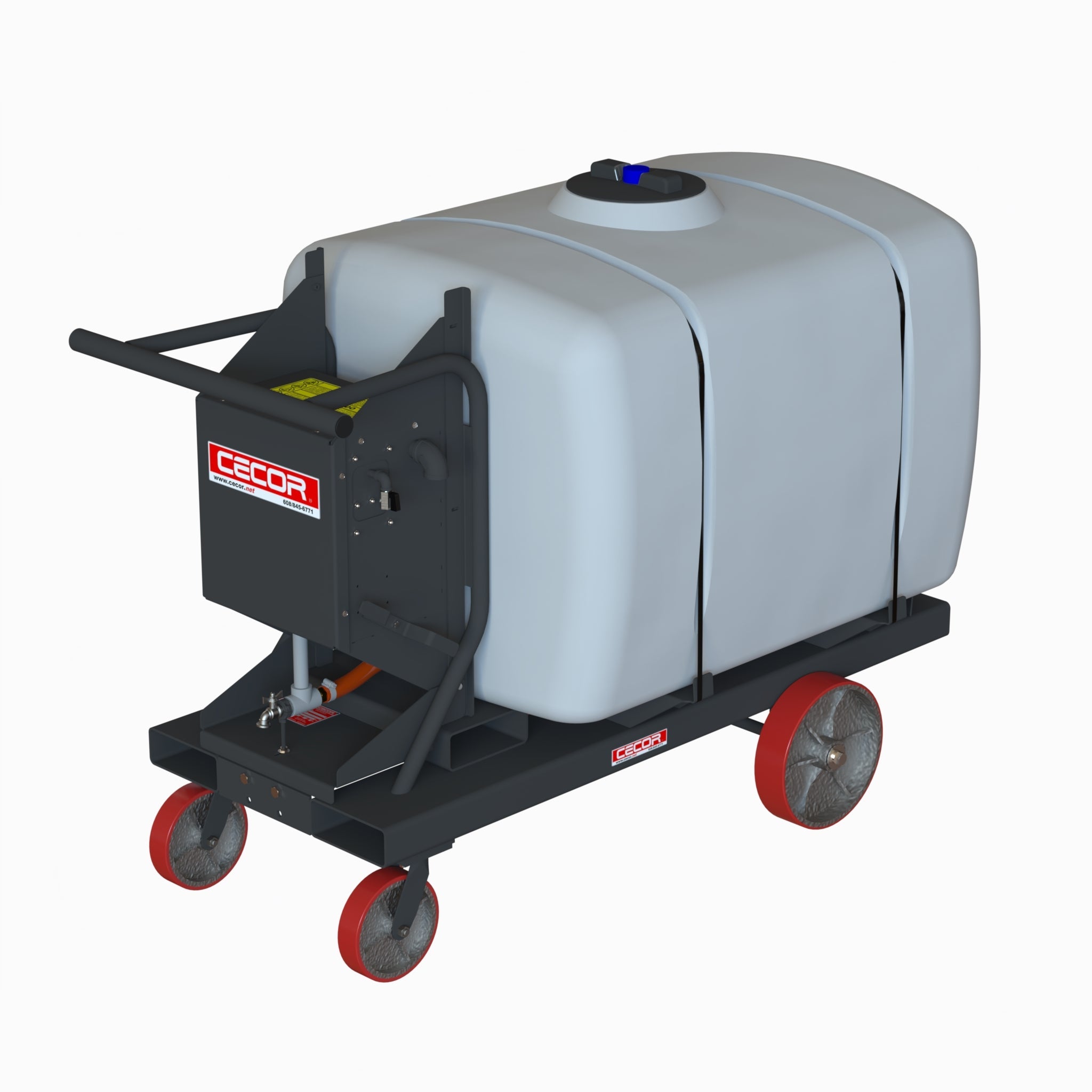

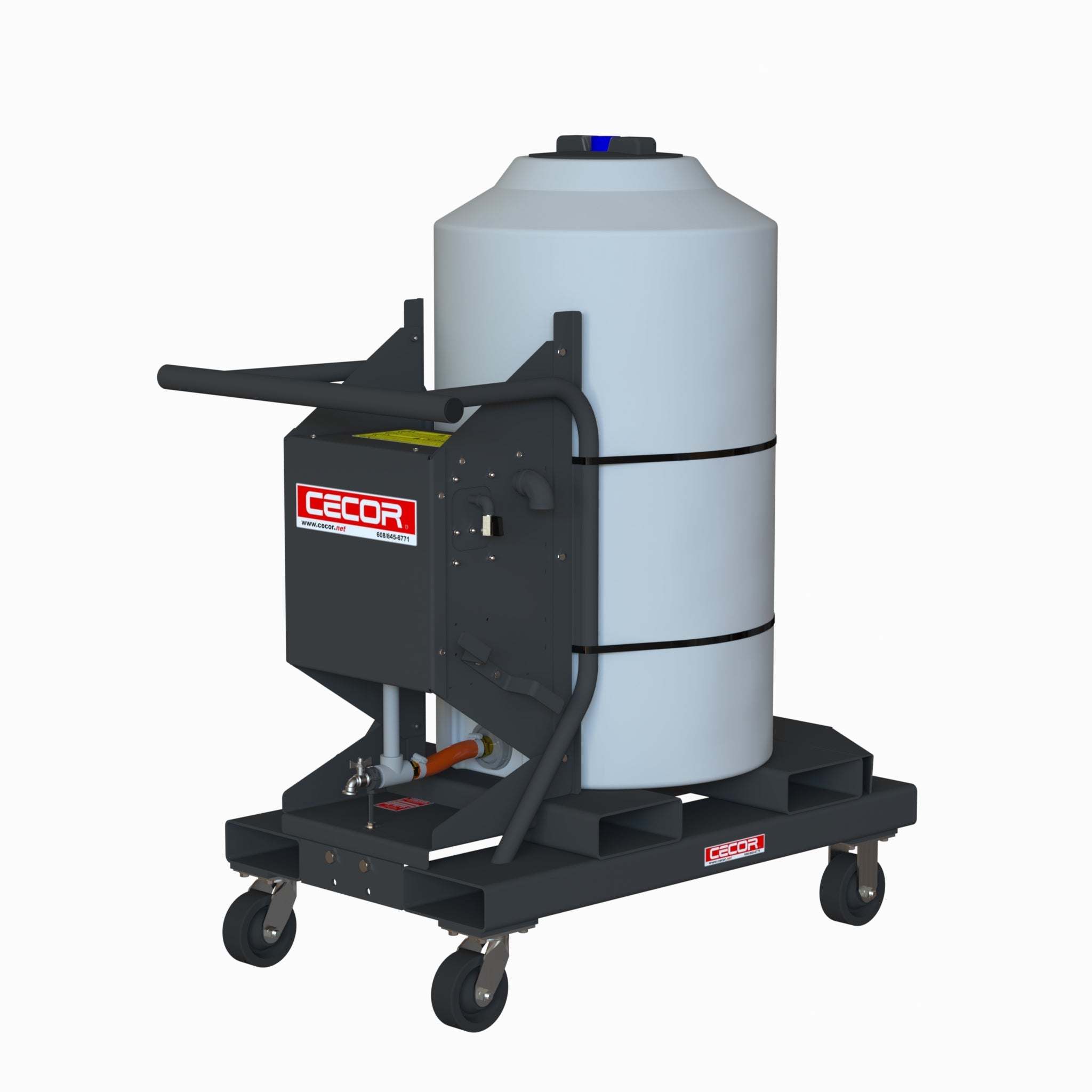

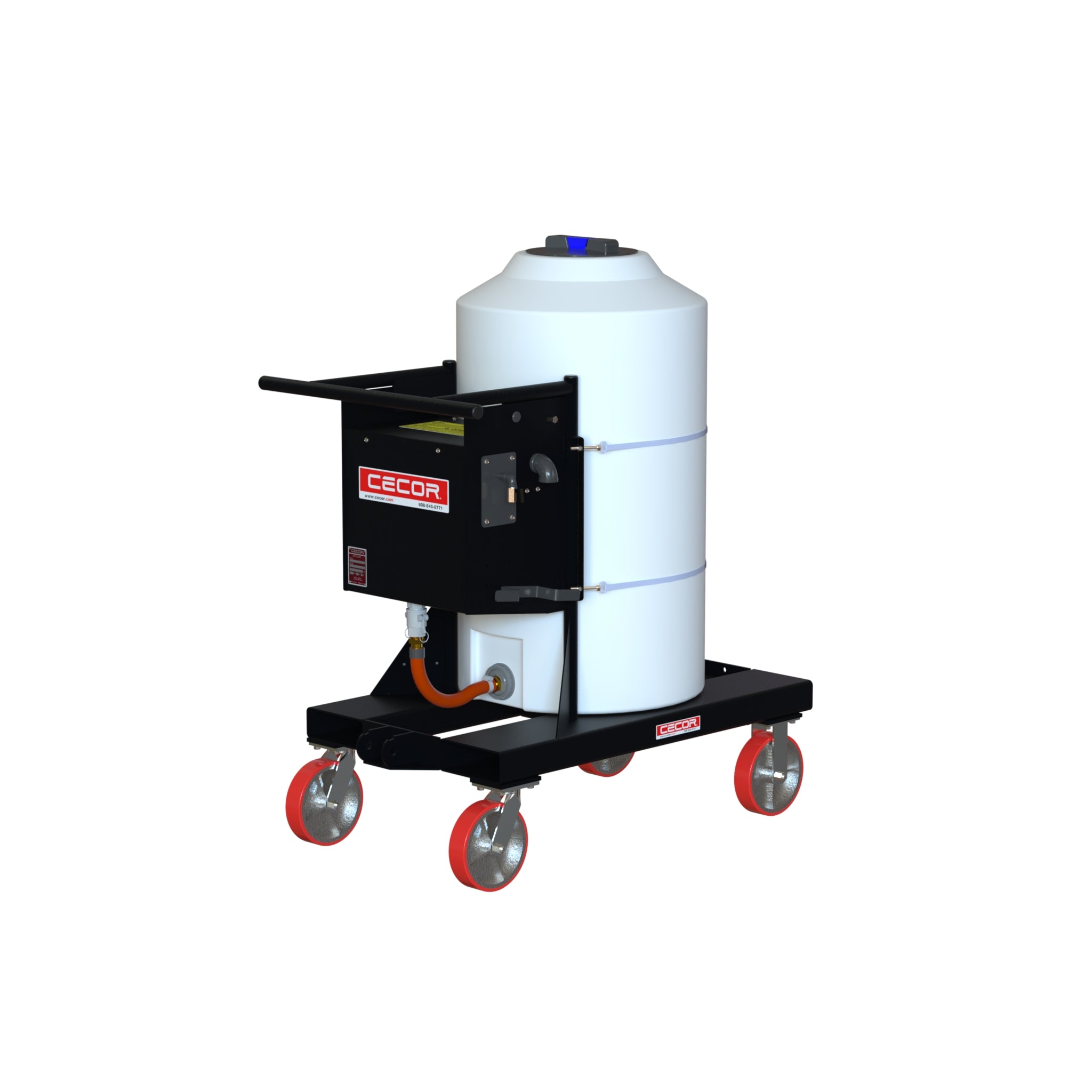

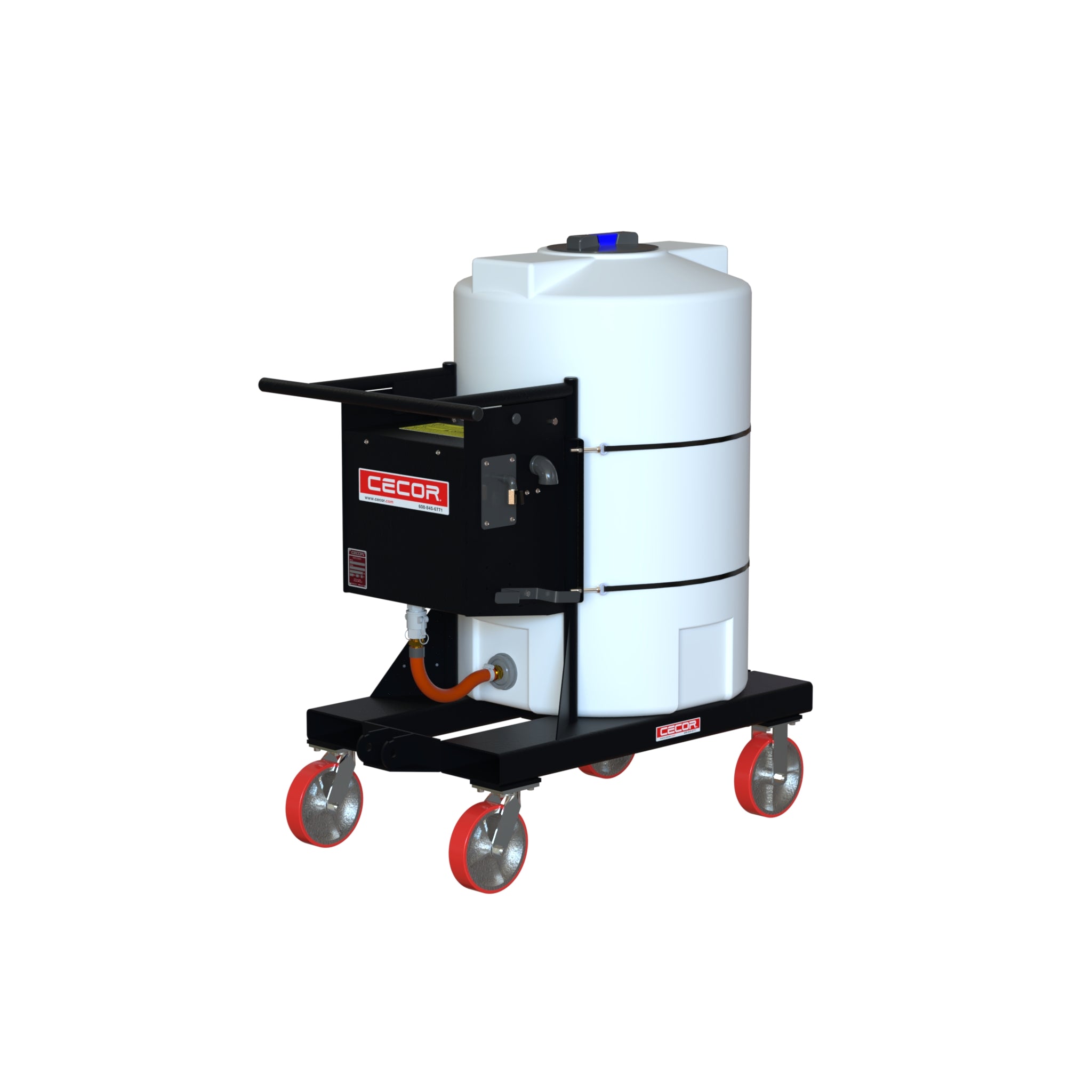

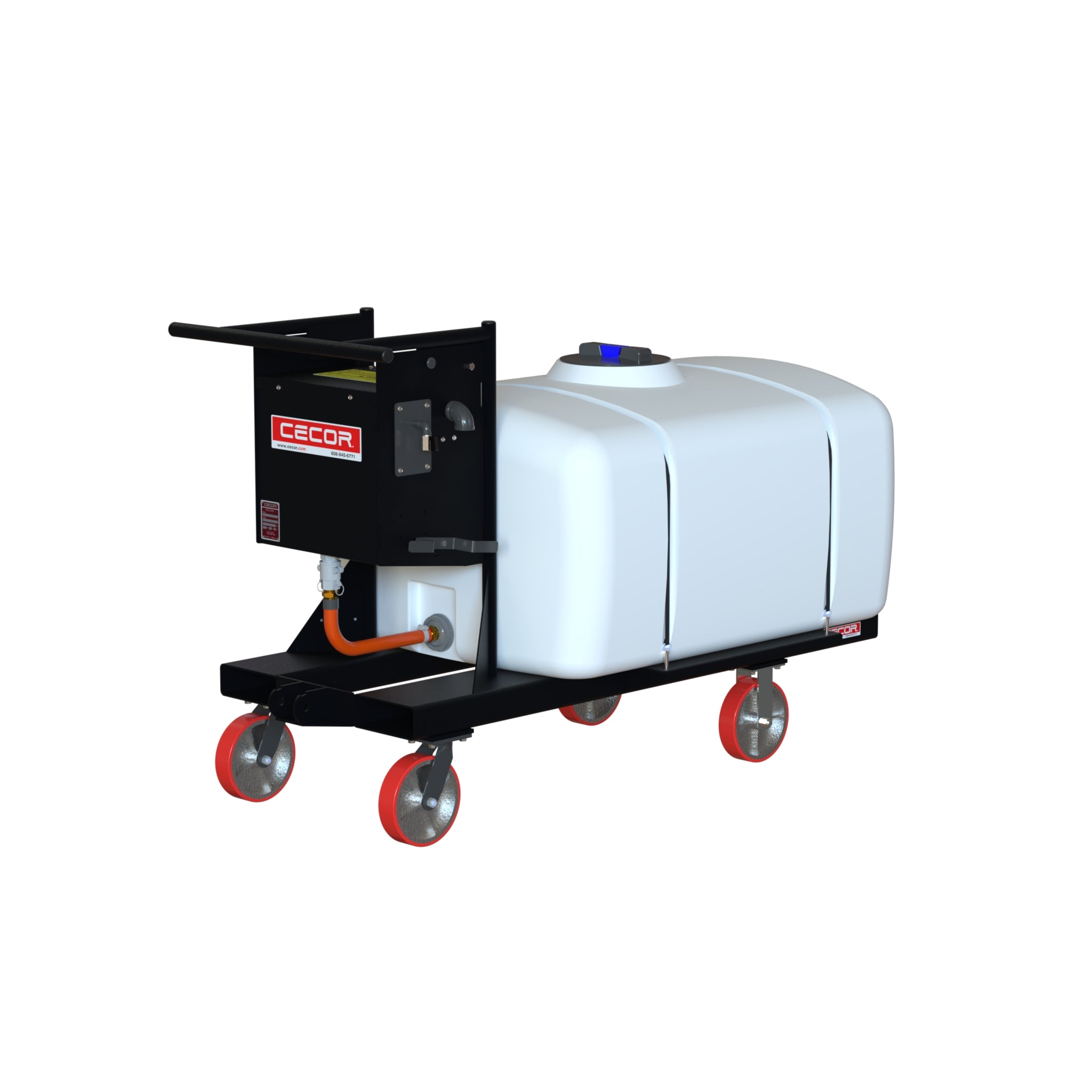

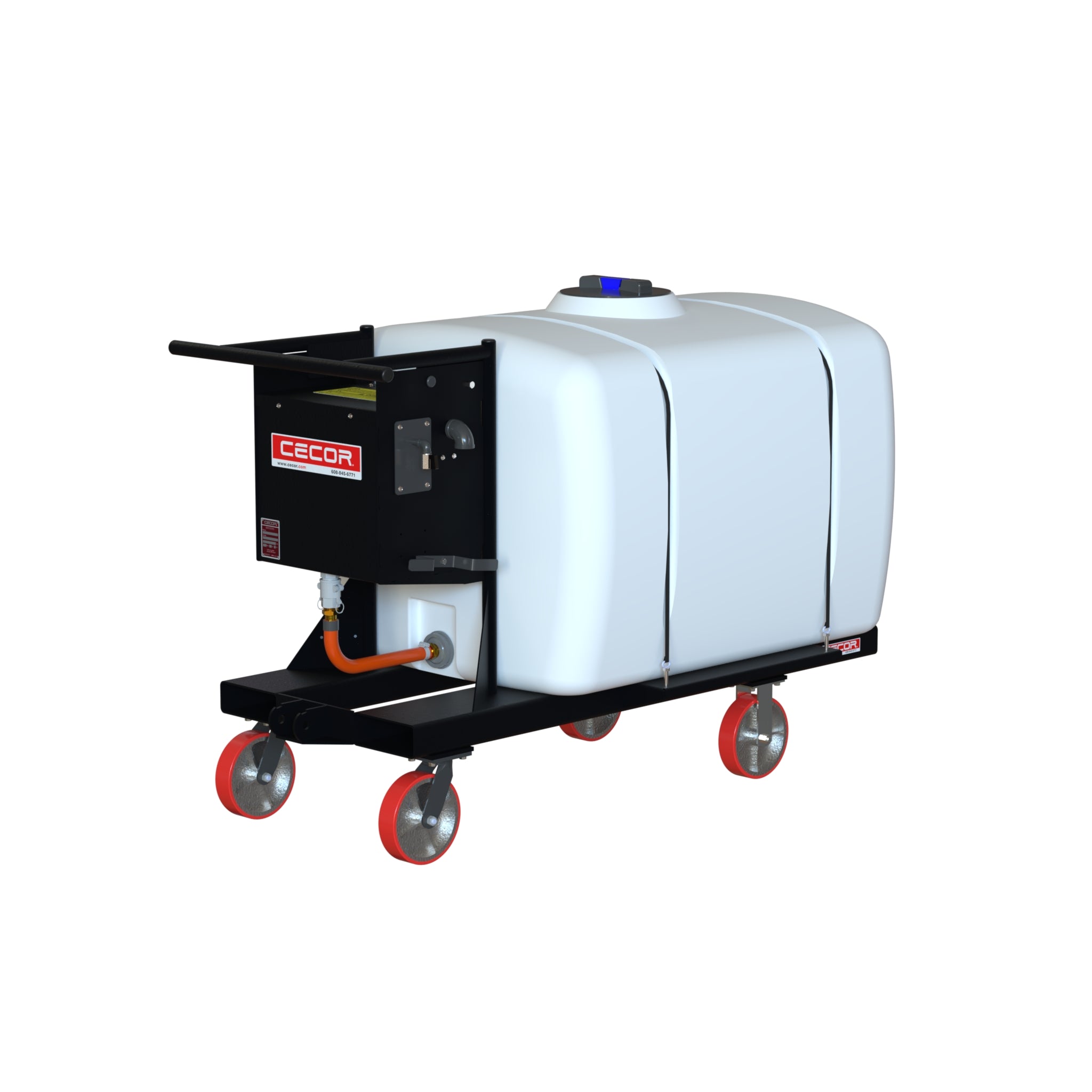

CECOR DA3 Dispenser: Redefining Industrial Fluid Management
Introducing CECOR's revolutionary air-powered mobile dispensers for industrial fluid management. With delivery rates of up to 25 gallons per minute, our dispensers ensure precise and efficient fluid distribution, reducing waste and operator fatigue.
Crafted for durability and reliability, the DA3 model offers customizable solutions in sizes from 65 to 200 gallons. From sump top-offs to machine tool refills, our dispensers handle tasks with ease, using either fresh or recycled fluid.
Equipped with quality casters for easy mobility, the DA3 features a diaphragm vacuum pump for swift fluid transfer, complemented by a shutoff valve for user control.
Pair the DA3 with our mixer for streamlined operations, enhancing fluid replenishment processes. Experience the future of fluid management with CECOR—elevate productivity, streamline workflow, and redefine excellence in your industry.
Series: | DA3 |
Tank Sizes | L / W / D - inches: |
65 gal | 47" x 28" x 56" |
246 L | 119.4 x 73.66 x 142.24 cm |
100 gal | 47" x 28" x 56" |
378 L | 119.4 x 73.66 x 142.24 cm |
150 gal | 67" x 28"x 48" |
568L | 170.20 x 73.66 x 121.9 cm |
200 gal | 67" x 28" x 51" |
757 L | 170.20 x 73.66 x 129.5 cm |
Dispenser Details | |
Transport: | PTL (Push or Lift with optional Tow) |
Pump: | Diaphragm Vacuum |
Air Hose: | 1/4" x 20' | .635 cm x 6.09.6 m |
Air Requirements: | 20 to 100 PSI |
Dispensing Speed: | Up to 25 gpm | 95 lpm |
Drain: | 3/4" Spigot |
Shipping: | LTL |
Standard Dispense Hose: | |
Inches | 1" (5.08 cm) ID x 16' (4.8768 m) |
Nozzle: | Full flow shut-off nozzle |
Dispenser Wheels: | |
65 Gal | 246 L | |
Front: | Two 5" (12.7 cm) x 2" (5.08 cm) Swivel |
Rear: | Two 5" (12.7 cm) x 2" (5.08 cm) Rigid |
100 gal | 378 L | |
Front: | Two 5" (12.7 cm) x 2" (5.08 cm) Swivel |
Rear: | Two 5" (12.7 cm) x 2" (5.08 cm) Rigid |
150 gal | 568L | |
Front: | Two 8" (20.32 cm) x 2" (5.08 cm) Swivel |
Rear: | Two 12" (30.08 cm) x 3" (7.62 cm) Wheels |
200 gal | 757 L | |
Front: | Two 8" (20.32 cm) x 2" (5.08 cm) Swivel |
Rear: | Two 12" (30.08 cm) x 3" (7.62 cm) Wheels |
